In the realm of deep foundation and geotechnical engineering, pile cropping and secant pile walls play a significant role in ensuring structural stability and integrity. These methods are integral in preparing construction sites, particularly in urban or geologically challenging areas. As construction demands evolve, so do the techniques used to support and protect infrastructure. Both pile cropping and secant pile walls are specialized methods, and understanding their applications, processes, and benefits offers insights into their importance in the construction industry.

Pile cropping is the process of removing the excess concrete from the top of foundation piles once they have been cast. During the construction of bored or cast-in-place piles, the concrete is typically poured above the final required level to ensure full compaction and eliminate any potential defects at the pile head. Once the concrete has set, the extra portion is cropped to the desired cut-off level. This is essential to provide a clean and level surface for the structural connection between the pile and the rest of the foundation, such as pile caps or slabs.

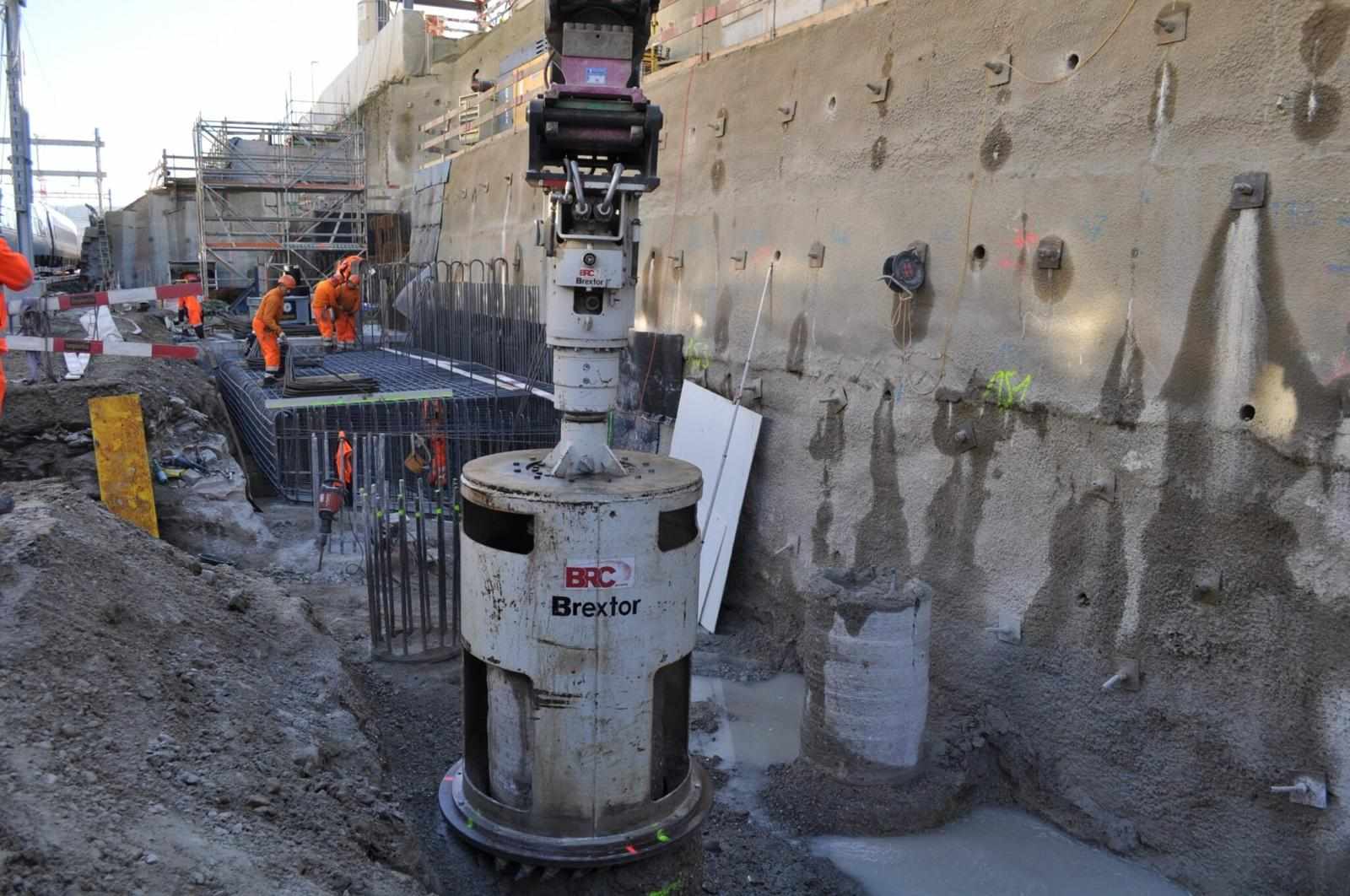

There are various methods of pile cropping, including manual breaking using handheld tools, mechanical cropping using hydraulic equipment, and more advanced methods like wire sawing or hydrodemolition. Each method has its own advantages depending on the size of the project, the pile diameter, accessibility, and environmental considerations. Mechanical pile croppers, for instance, are popular due to their speed, efficiency, and ability to reduce the risk of injury to workers. They are also more precise and cause less vibration, which is crucial in sensitive or densely populated areas.

Accurate pile cropping ensures that the reinforcement bars within the pile are not damaged and remain intact to provide the necessary structural continuity. Improper cropping techniques can lead to issues like spalling, reduced pile integrity, and increased costs due to repairs or rework. As such, pile cropping is more than just a preparatory task—it is a critical component of foundation construction that demands attention to detail and appropriate technique selection.

On the other hand, Secant pile wall are a sophisticated form of retaining wall used for earth retention and excavation support, especially in areas with high groundwater levels or close proximity to existing structures. A secant pile wall is formed by constructing intersecting concrete piles, typically in two phases: primary and secondary piles. The primary piles are installed first with a wider spacing, followed by the secondary piles which are drilled in between and overlap the primary ones, cutting into them. This overlapping design provides a virtually continuous wall with reduced permeability and high structural integrity.

Secant pile walls can be either hard/hard or hard/soft, depending on the composition of the primary and secondary piles. In a hard/hard wall, both sets of piles are reinforced with concrete capable of resisting structural loads, while in a hard/soft wall, the primary piles are made with a softer material such as lean mix concrete, mainly to reduce cost and simplify drilling.

These walls are often used in deep basements, underground stations, tunnel shafts, and other structures where conventional retaining systems may not be suitable. They offer advantages such as minimal ground movement, excellent water control, and adaptability to various soil conditions. However, the construction of secant pile walls requires precise alignment, experienced design and execution teams, and specialized equipment. Any deviation in pile position or overlap can compromise the wall’s integrity, which underscores the importance of quality control and engineering expertise.

Together, pile cropping and secant pile walls illustrate the complexity and precision required in modern construction practices. While pile cropping prepares foundation elements to meet structural design requirements, secant pile walls provide critical support and containment in excavation and below-ground work. Both contribute to safe, efficient, and durable construction outcomes, especially in demanding environments. Understanding their role is key for engineers, contractors, and stakeholders aiming to deliver successful infrastructure projects.
